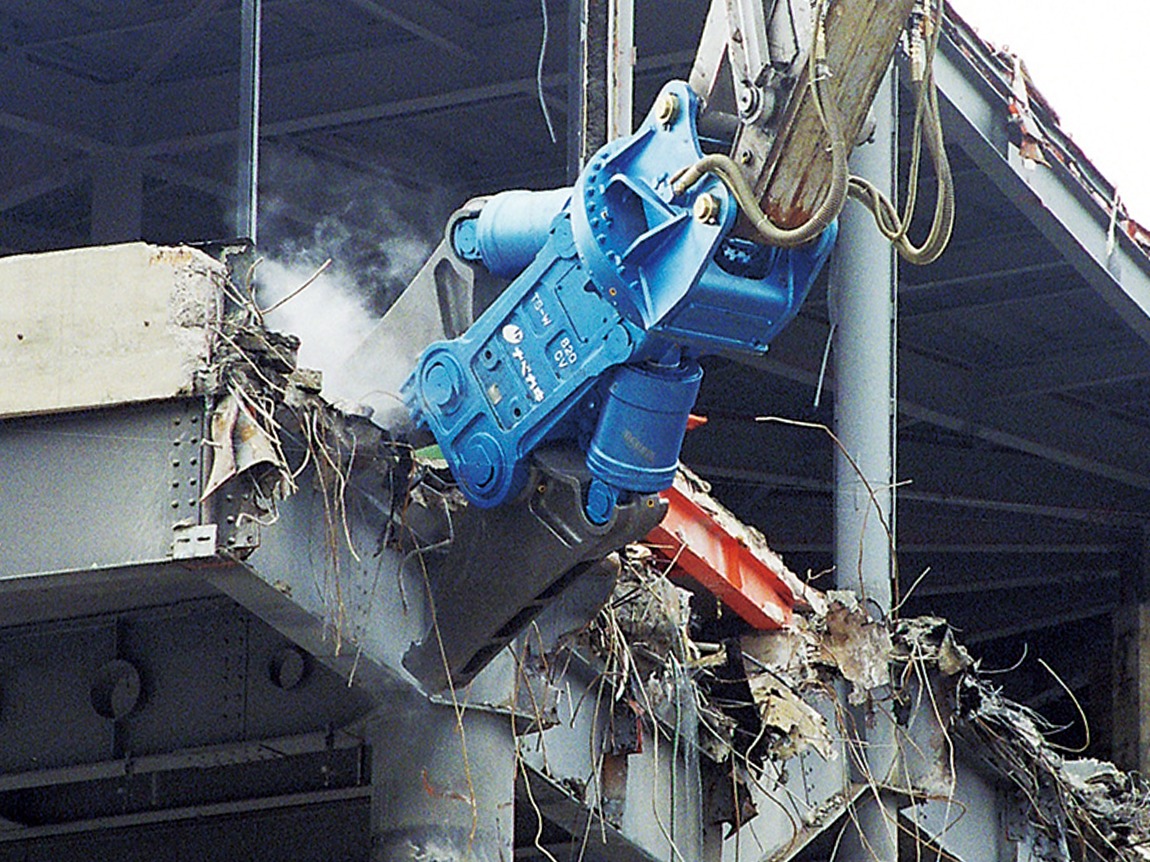

TS-W series CUTTER

  • TS-W500CV

  • TS-WB600CV

  • TS-W610CV

  • TS-W720CV

  • TS-WB820CV

  • TS-WB1000CV

Processes steel frame structure.

Features

  1. The special casting alloy used delivers a lightweight crusher with superior durability.
  2. The longest cutter blade in its class.
  3. Adopts the press & cut method.
  4. A high oil flow speed valve reduces cycle time.
  5. The robust rotator feafures a durable bearing.



Specifications

■TS-W series CUTTER
Unit TS-W500CV TS-WB600CV TS-W610CV TS-W720CV TS-WB820CV TS-WB1000CV
Rotation Type FR/HR/ARTS FR/HR/ARTS FR/HR FR/HR FR/HR FR/HR
Operating Weight [kg] 2670/2730/2730 2660/2720/2720 3880/3920 5050 7270 9380
Overall Length [mm] 2510/2620/2620 2530/2640/2640 3000 3295 3740 4170
Max. Jaw Opening [mm] 760 710 840 955 1020 1370
Overall Width [mm] 1625 1680 1635 1740 1915 2400
Cutter Blade Length [mm] 500 600 610 720 820 1000
Cutting Force (Center) [kN] 2460 2300 2720 2925 3200 3675
Excavator Set Pressure [MPa] 35 35 35 35 35 35
Speed Valve YES YES YES YES YES YES
Suitable Carrier Range [Ton] 20~35 20~35 30~50 40~70 70~100 100〜200

Note) The above specifications are subject to change without notice. The above specifications assume the use of an OKADA universal pin mount.
