ASG series SILENT GRAPPLE
-
ASG-30R/RD
-
ASG-60R
-
ASG-130R/RDF
-
ASG-210R

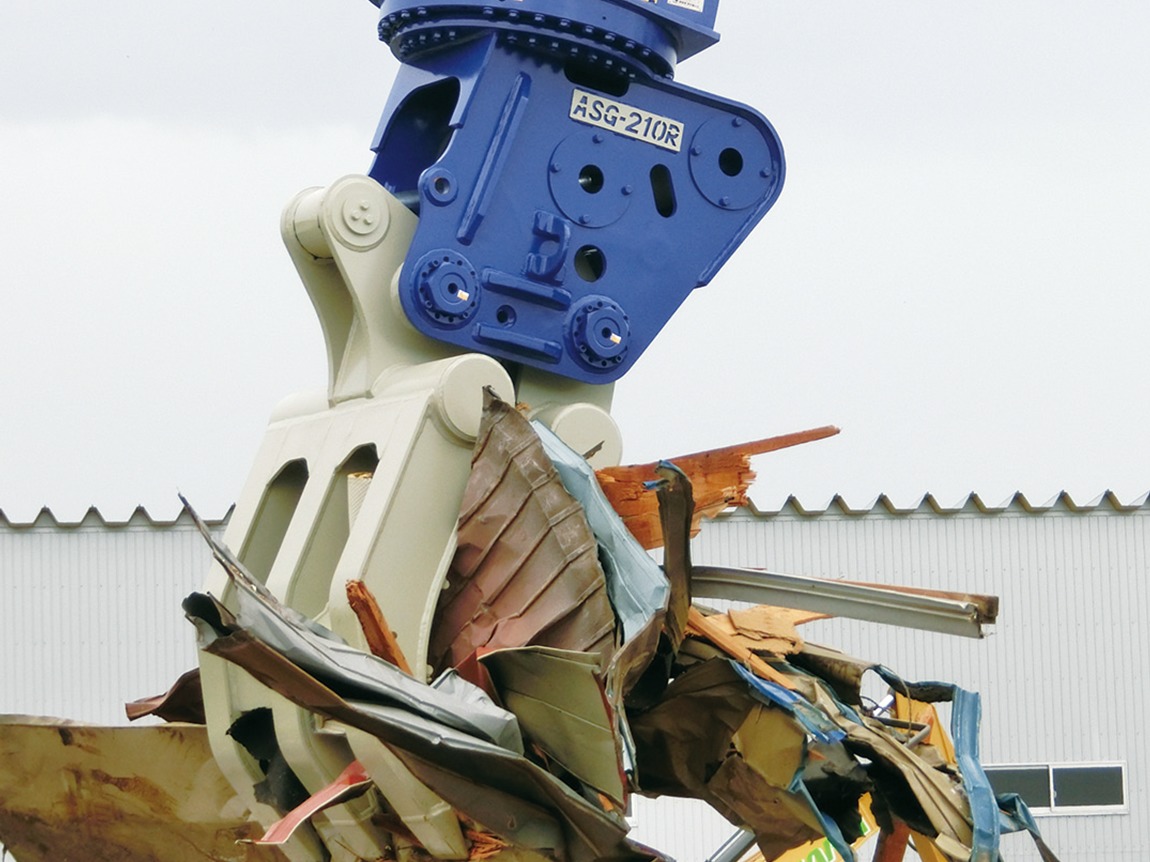

ASG grapple’s uses are demolition of wooden structure, scrap handling, loading, sorting and other applications.

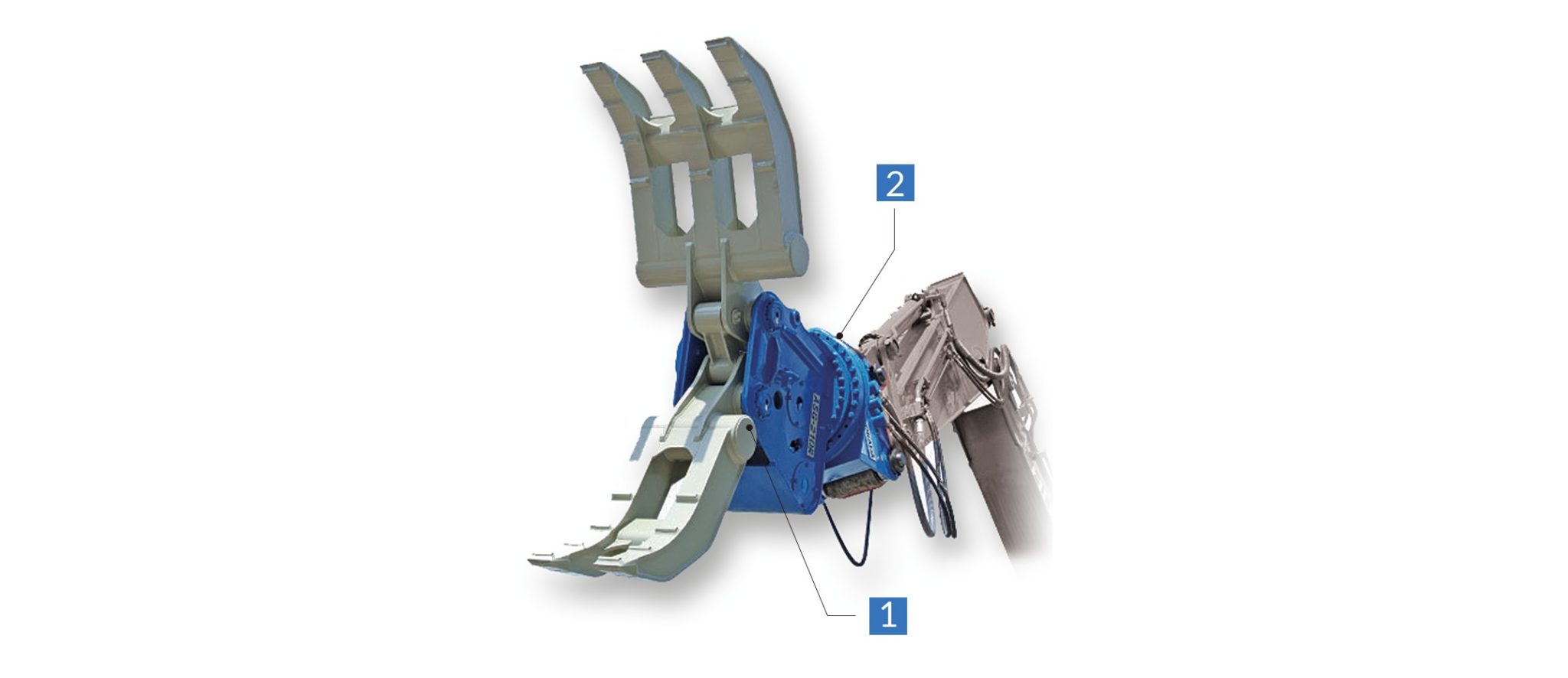

Features
- A powerful hydraulic motor allows easy rotation long, heavy objects.
- The robust rotator features a durable bearing.
Specifications
■ASG series SILENT GRAPPLE
| Unit | ASG-30R/RD | ASG-60R | ASG-130R/RDF | ASG-210R | |
|---|---|---|---|---|---|
| Operating Weight | [kg] | 260/265 | 530 | 970/990 | 1590 |
| Overall Length | [mm] | 1420 | 1860 | 2255 | 2610 |
| Max. Claw Opening | [mm] | 1100 | 1650 | 1830 | 2335 |
| Claw Width (3/2) | [mm] | 295/155 | 480/270 | 600/340 | 800/460 |
| Claw Depth (3/2) | [mm] | 655 | 855 | 955 | 1200 |
| Excavator Set Pressure | [MPa] | 25/21 | 28 | 28 | 28 |
| Suitable Carrier Range | [Ton] | 3〜5 | 6〜9 | 10〜16 | 18〜25 |
Note) The above specifications are subject to change without notice. The above specifications assume the use of an OKADA universal pin mount.
Solenoid valve is installed on ASG-30RD and ASG-130RDF. (It is used in breaker piping.)
