OMC series WOOD CUTTER
-

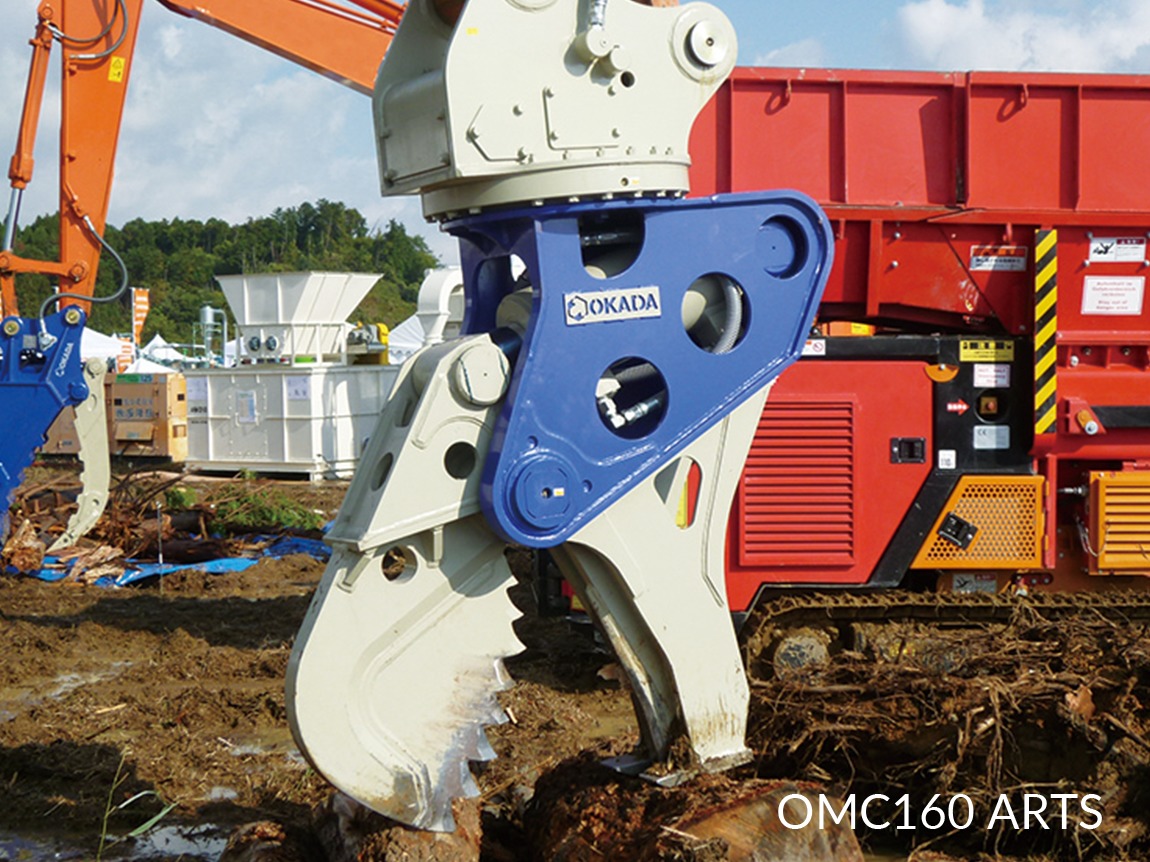

OMC160 ARTS/HR
-
OMC160 FIX
-

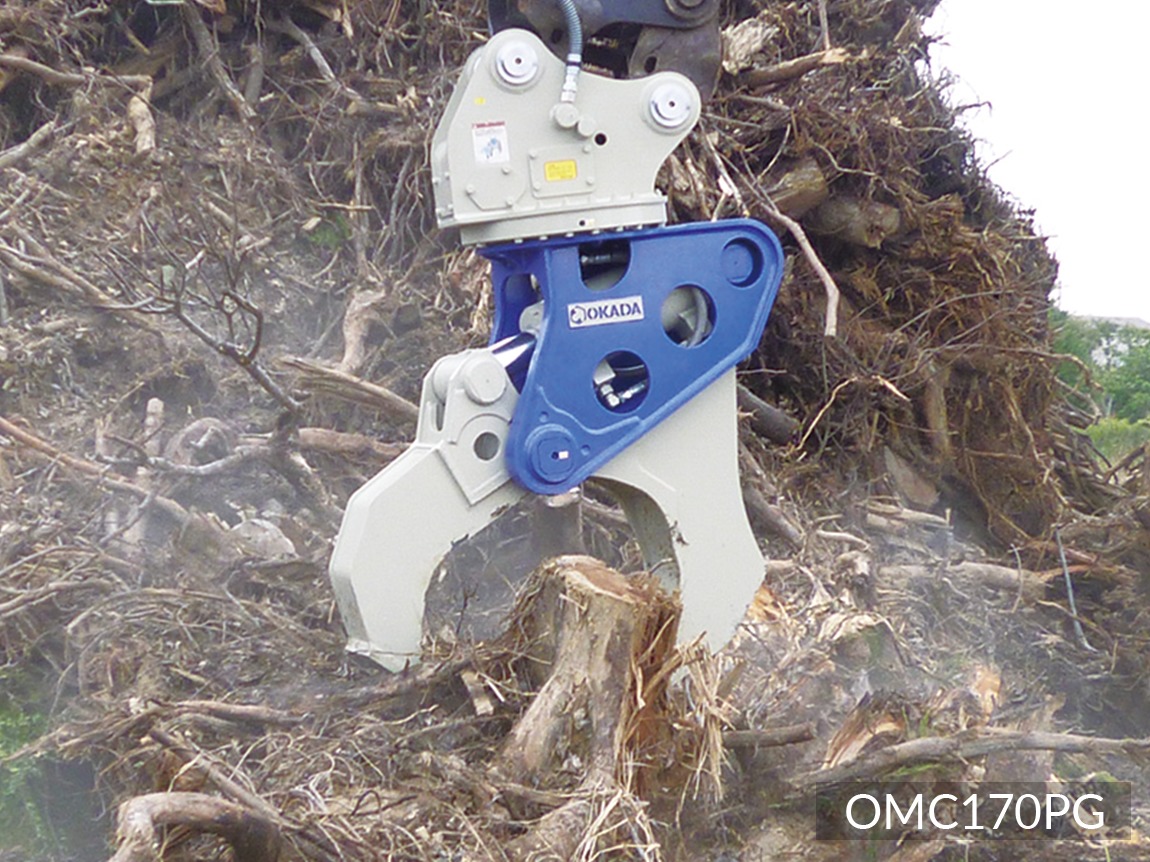

OMC170PG ARTS/HR
OMC wood cutter processes logging materials, root balls, stumps, and any other wood products.
Features
- A unique saw-shaped blade efficiently processes wood material.
- Rotating models (ARTS/HR) and fixed models are available.
Specifications
■OMC series WOOD CUTTER
| Unit | OMC160 ARTS/HR | OMC160 FIX | OMC70PG ARTS/HR | |
|---|---|---|---|---|
| Operating Weight | [kg] | 1410/1380 | 1090 | 1400/1380 |
| Overall Length | [mm] | 2100 | 1700 | 2240 |
| Overall Width | [mm] | 1595 | 1595 | 1710 |
| Max. Jaw Opening | [mm] | 710 | 710 | 865 |
| Crushing Force | [KN] | 350 | 350 | 350 |
| Excavator Set Pressure | [MPa] | 32 | 32 | 32 |
| Speed Valve | – | – | – | |
| Suitable Carrier Range | [Ton] | 11〜22 | 11〜22 | 11〜22 |
Note) The above specifications are subject to change without notice. The above specifications assume the use of an OKADA universal pin mount.
