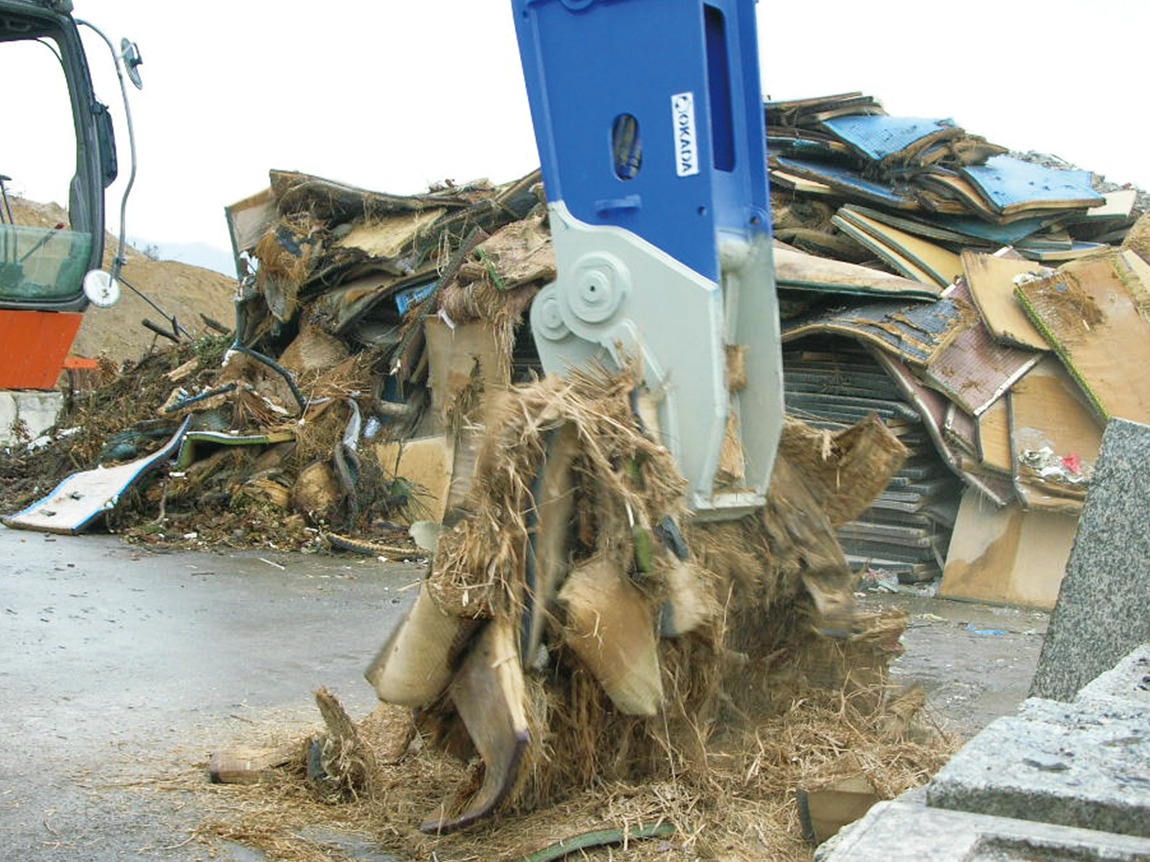

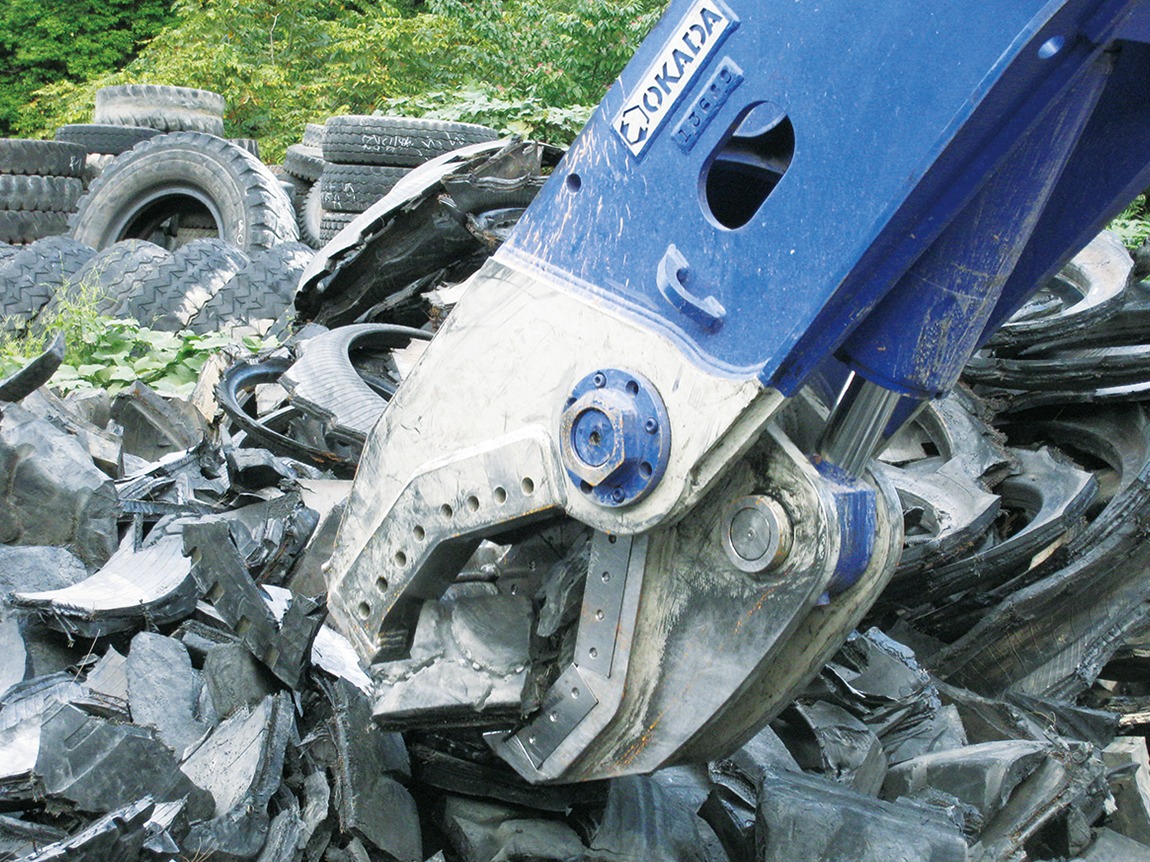

C series CLEAN CUTTER
-
C-100
-
C-200
Features
- Reduces cutting resistance by adopting an asymmetrical frame.
- C series gives to the operator good visibility for easy operation.
- Cuts two surfaces of material at once.
Specifications
■C series CLEAN CUTTER
| Unit | C-100 | C-200 | |
|---|---|---|---|
| Operating Weight | [kg] | 965 | 1400 |
| Overall Length | [mm] | 1725 | 1945 |
| Max Jaw Opening | [mm] | 605 | 705 |
| Ripping Blade Length (Arm/Frame) | [mm] | 245/440 | 275/495 |
| Cutter Blade Length(Arm/Frame) | [mm] | 400/460 | 460/550 |
| Cutting Force (Tip) | [kN] | 240 | 410 |
| Cutting Force (Center) | [kN] | 380 | 720 |
| Excavator Set Pressure | [MPa] | 35 | 35 |
| Speed Valve | – | – | |
| Suitable Carrier Range | [Ton] | 10〜13 | 18〜21 |
Note) The above specifications are subject to change without notice. The above specifications assume the use of an OKADA universal pin mount.
