TMB series TROMMEL SCREENING BUCKET
-
TMB-60
-
TMB-135
-
TMB-200
-
TMB-300

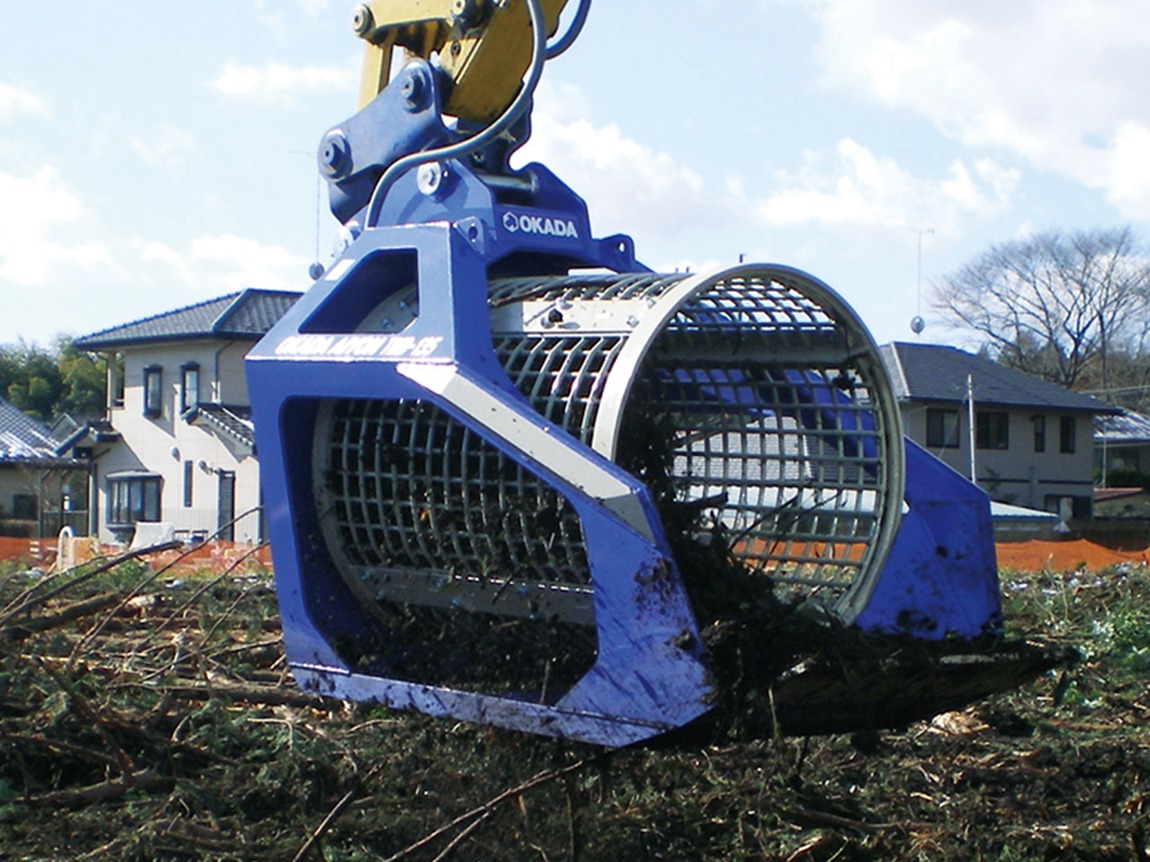

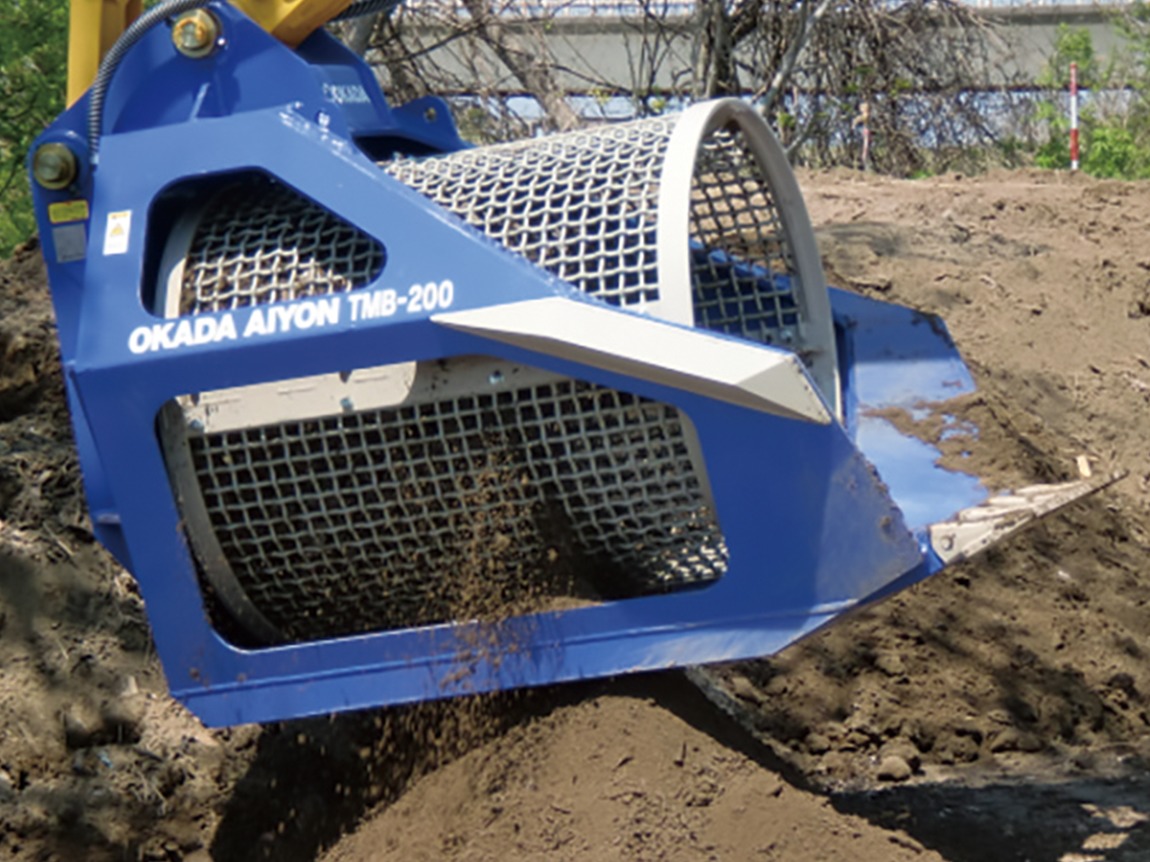

Seperates C&D debris out of soil and sand, gravel and aggregates out of soil, non-flammable material from ashes at incinerator, stones out of excavated material and more.

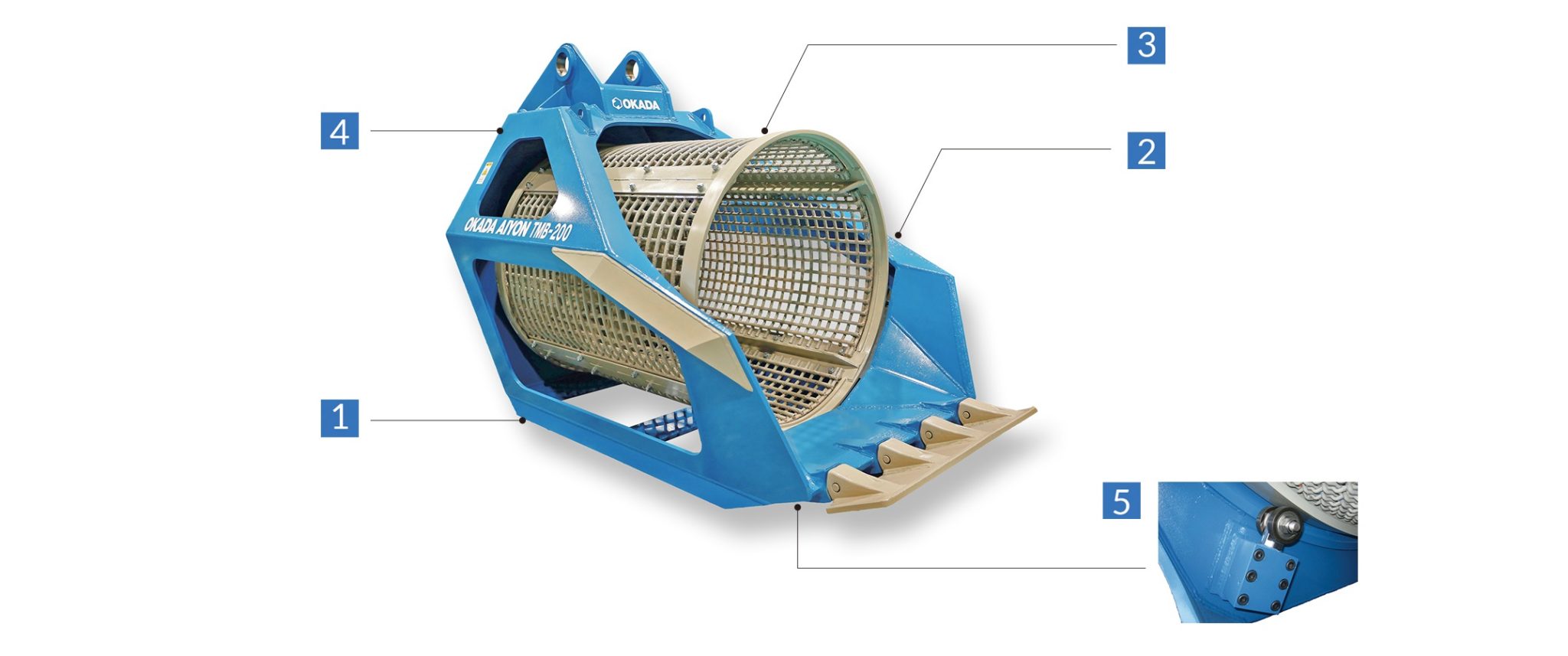

Features
- SCREENING DEBRIS:
Soil, garbage and various objects. - Light weight, heavy duty frame structure.
- Reduced noise & vibration.
- Unique built-in flow control valve provides smooth operation.
- Front support for heavy loads.
Specifications
■TMB series TROMMEL SCREENING BUCKET
| Unit | TMB-60 | TMB-135 | TMB-200 | TMB-300 | |
|---|---|---|---|---|---|
| Operating Weight | [kg] | 710 | 1430 | 2070 | 2800 |
| Overall Length | [mm] | 1820 | 2350 | 2580 | 3050 |
| Overall Height | [mm] | 1310 | 1670 | 1835 | 2010 |
| Overall Width | [mm] | 1050 | 1550 | 1680 | 1680 |
| Screen Diameter | [mm] | 815 | 1100 | 1200 | 1400 |
| Screen Length | [mm] | 950 | 1250 | 1400 | 1600 |
| Suitable Carrier Range | [Ton] | 6〜9 | 10〜16 | 20〜25 | 30〜40 |
Note) The above specifications are subject to change without notice. The above specifications assume the use of an OKADA universal pin mount.
