OSC series PULVERIZER

  • OSC-35AV

  • OSC-70AV

  • OSC-135AV

  • OSC-200AV

  • OSC-280AV

  • OSC-360AV

  • OSC-500AV

  • OSC-650AV

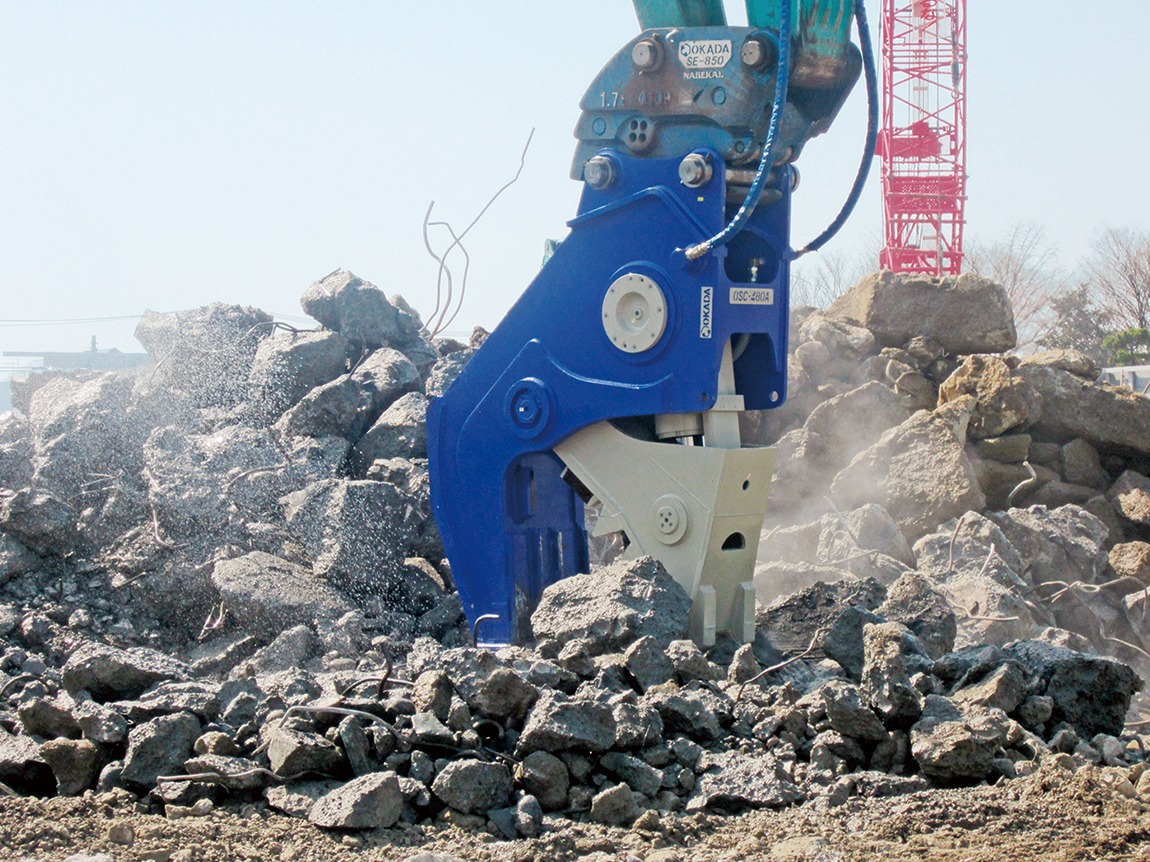

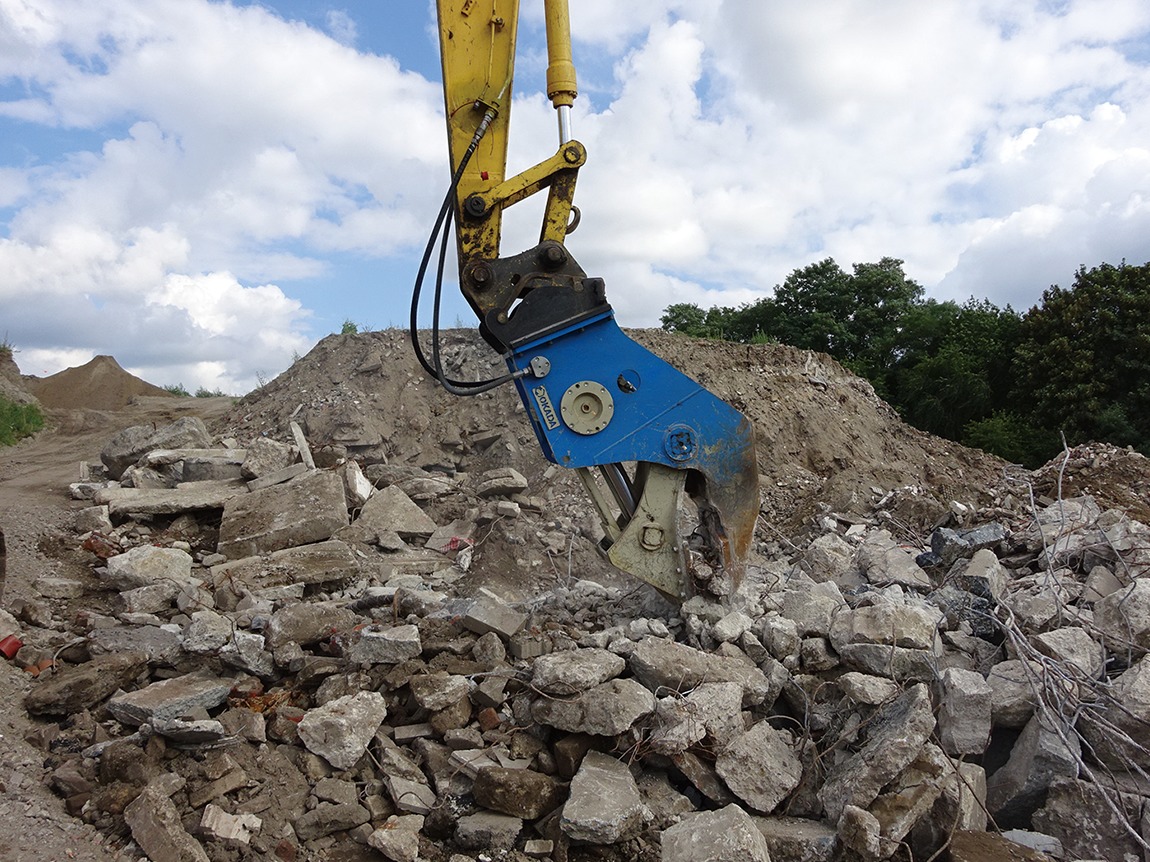

Pulverizers were developed as a result of a growing need to reduce disposal volume and recycle concrete waste created during concrete building demolition. The flat, wide jaw design and an internal speed valve make it possible to grab and crush large sections of concrete quickly.

Features

  1. Large jaw opening and crushing area ensure unmatched productivity.
  2. “Shell-shaped wedge” provides high crushing ability.
  3. A high flow speed valve built into the cylinder achieves the faster cycle time in its class.
  4. Short body: Easy to operate.

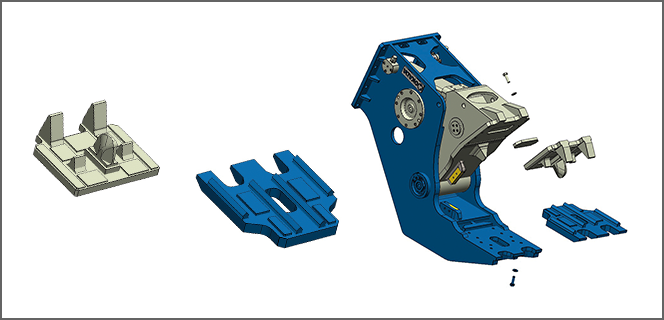

■BOLT-ON TOOTH PLATE SYSTEM (OSC-280AV)



Specifications

■OSC series PULVERIZER
Unit OSC-35AV OSC-70AV OSC-135AV OSC-200AV OSC-280AV OSC-360AV OSC-500AV OSC-650AV
Operating Weight [kg] 280 650 1090 1750 1940 3160 4800 5650
Overall Length [mm] 1245 1580 1930 2190 1900 2700 3110 3625
Overall Height [mm] 705 960 1175 1410 1365 1760 2135 2210
Max. Jaw Opening [mm] 430 600 730 860 885 1105 1465 1500
Cutter Blade Length [mm] 90 100 150 150 150 180 215 215
Crushing Force (Center) [kN] 305 450 600 880 880 1000 1115 1400
Excavator Set Pressure [MPa] 25 30 35 35 35 35 35 35
Speed Valve YES YES YES YES YES YES YES YES
Suitable Carrier Range [Ton] 3〜5 6〜9 10〜16 18〜30 18〜30 30〜50 40〜100 50〜100

Note) The above specifications are subject to change without notice. The above specifications assume the use of an OKADA universal pin mount.
